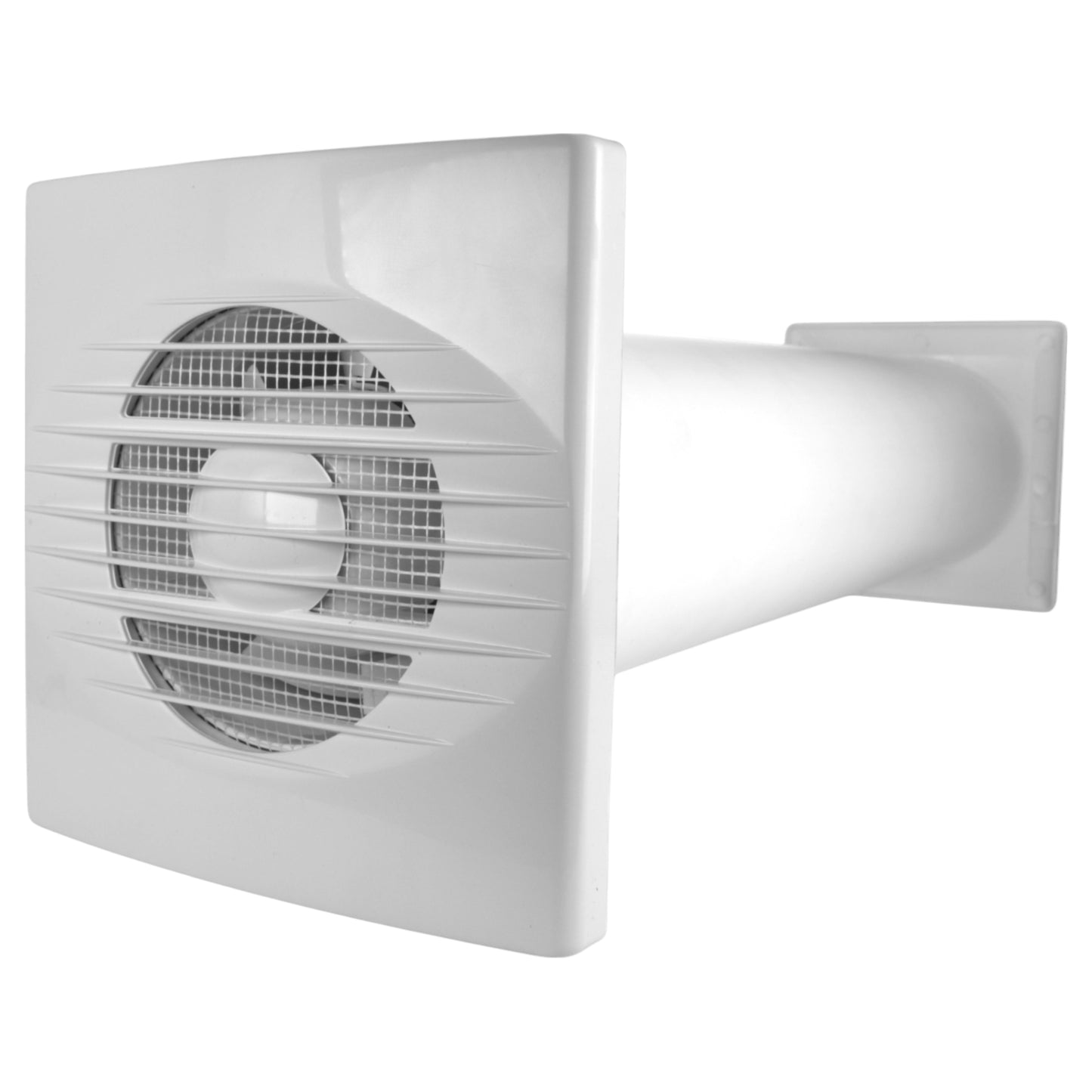

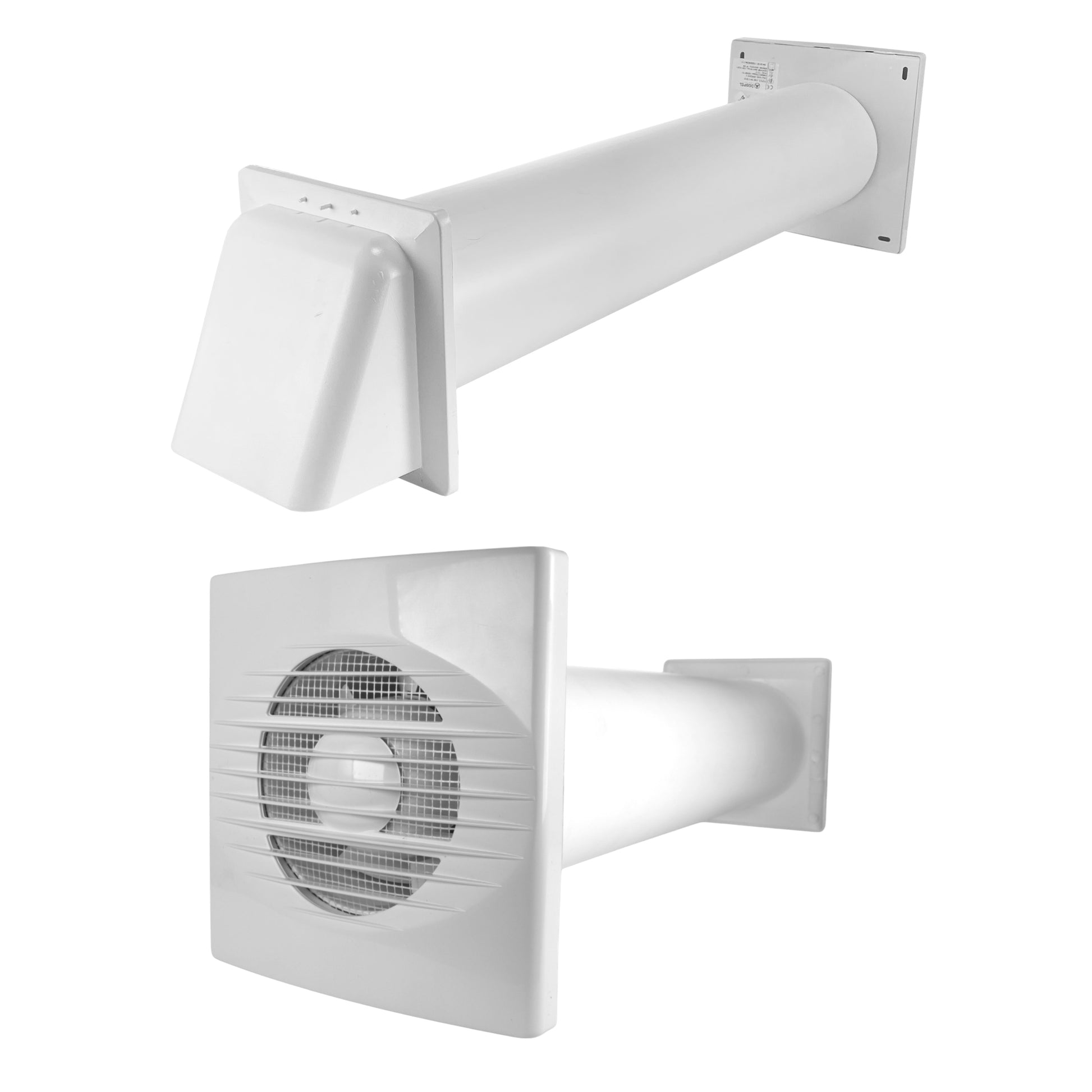

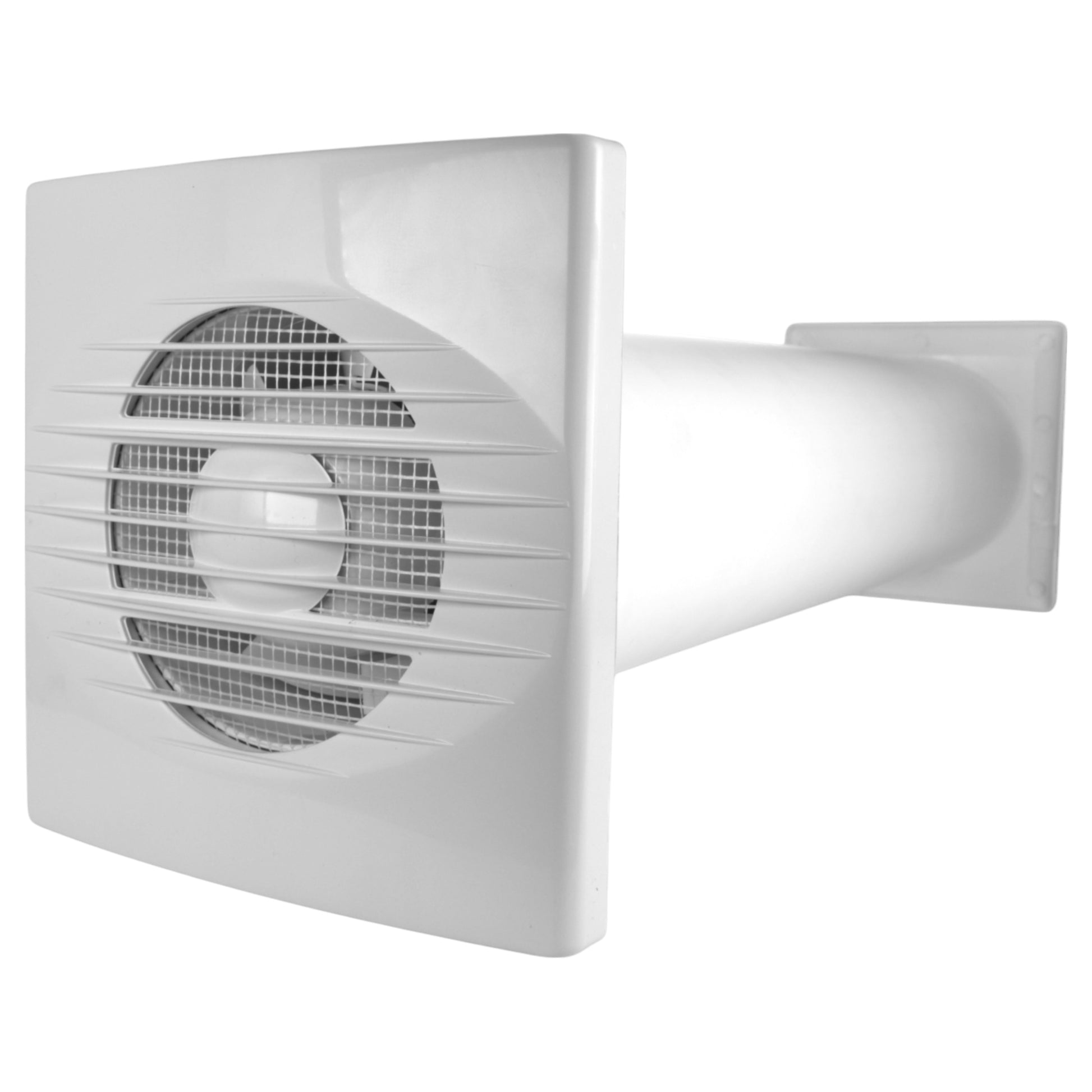

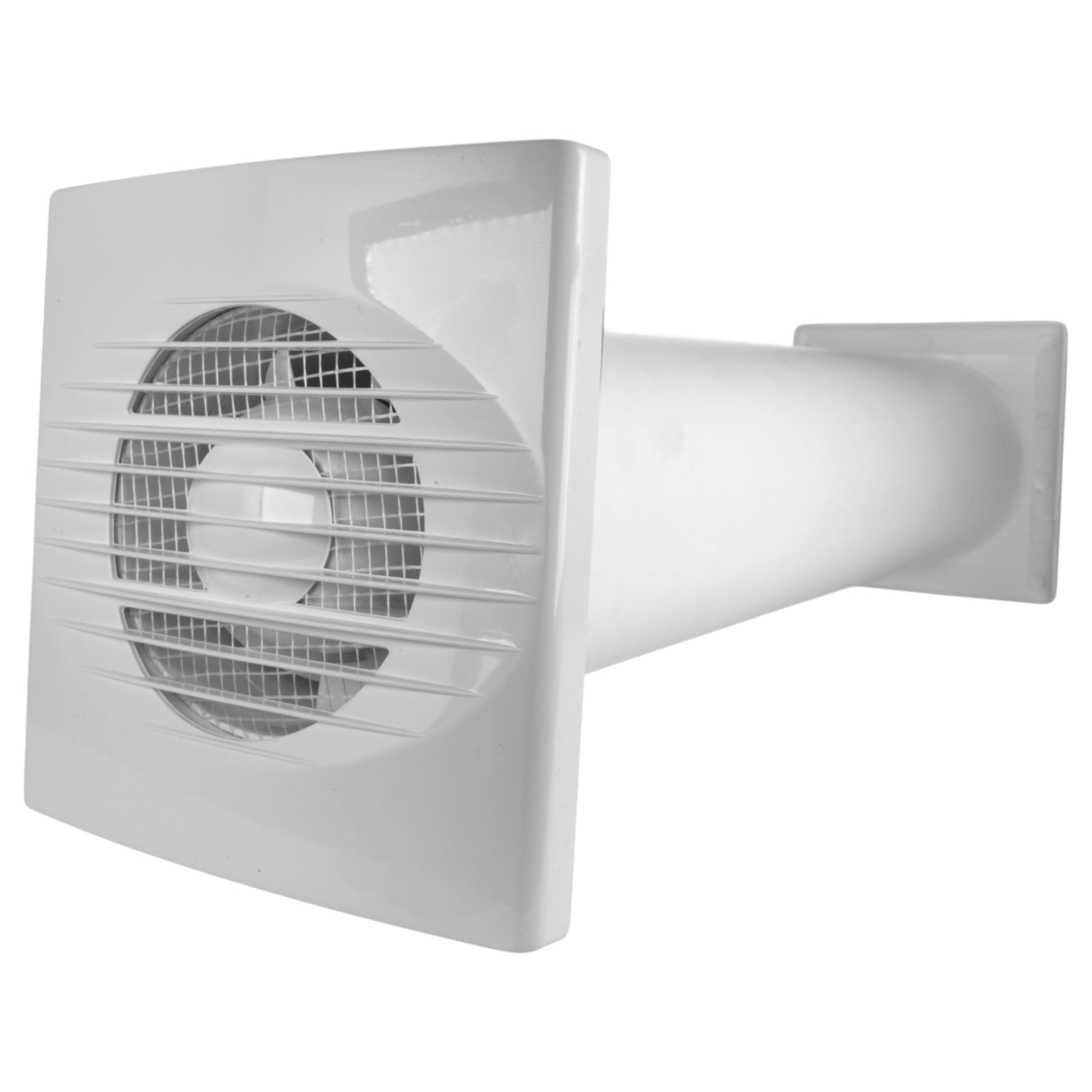

Through Wall Ventilation Kit RICO Timer and Humidistat Fan with White External Vent

F-RICO-100WCH-KIT-WHITE-001

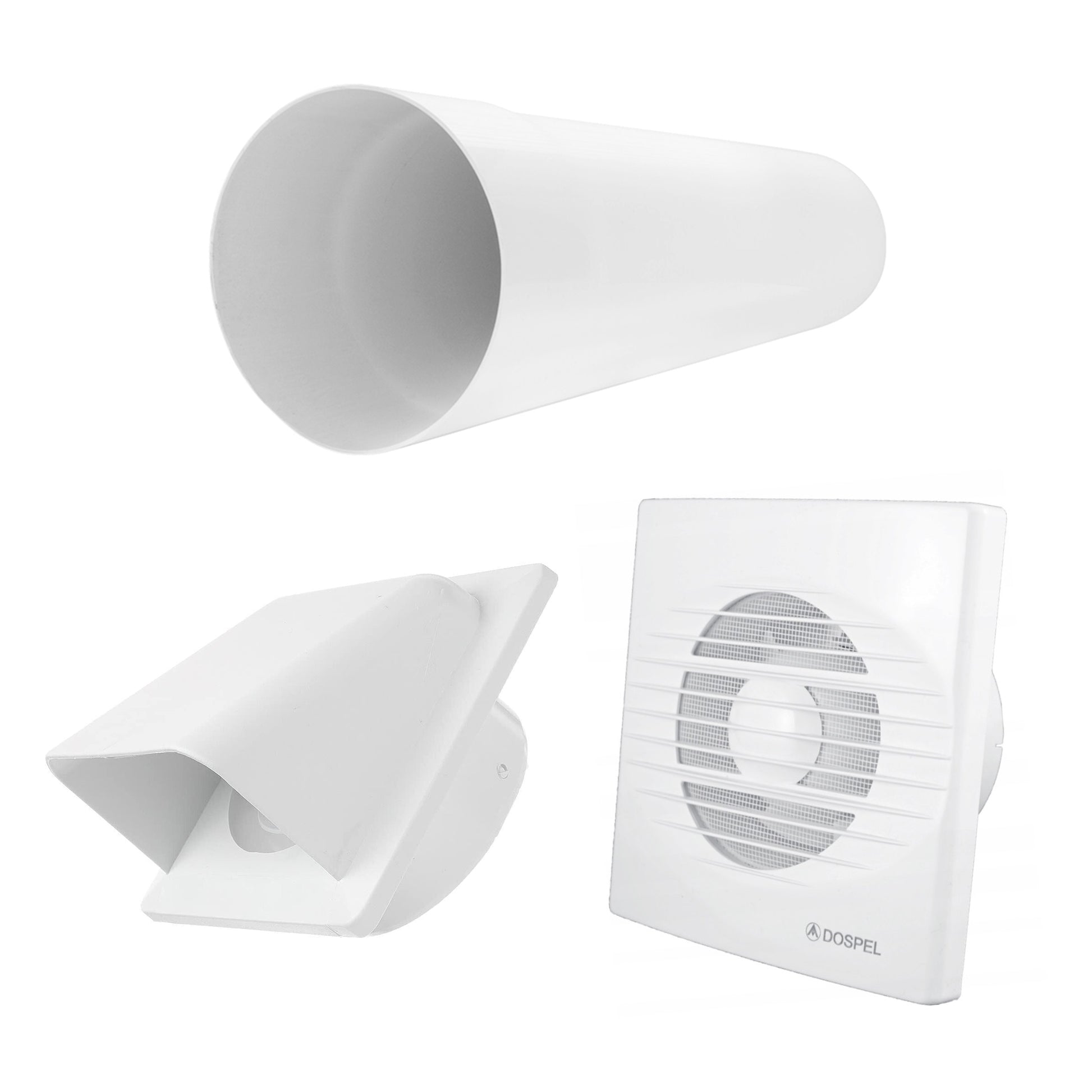

This kit contains:

• 1 x Rico Bathroom Fan 100mm Model Timer Switch and a Humidistat (F-RICO-100WCH)
• 1 x Vent Duct Pipe Rigid PVC 50cm (V-P100R50CM)
• 1 x External Hooded White Louvre Vent (VC-KRD0201-100-W)

F-RICO-100WCH-001

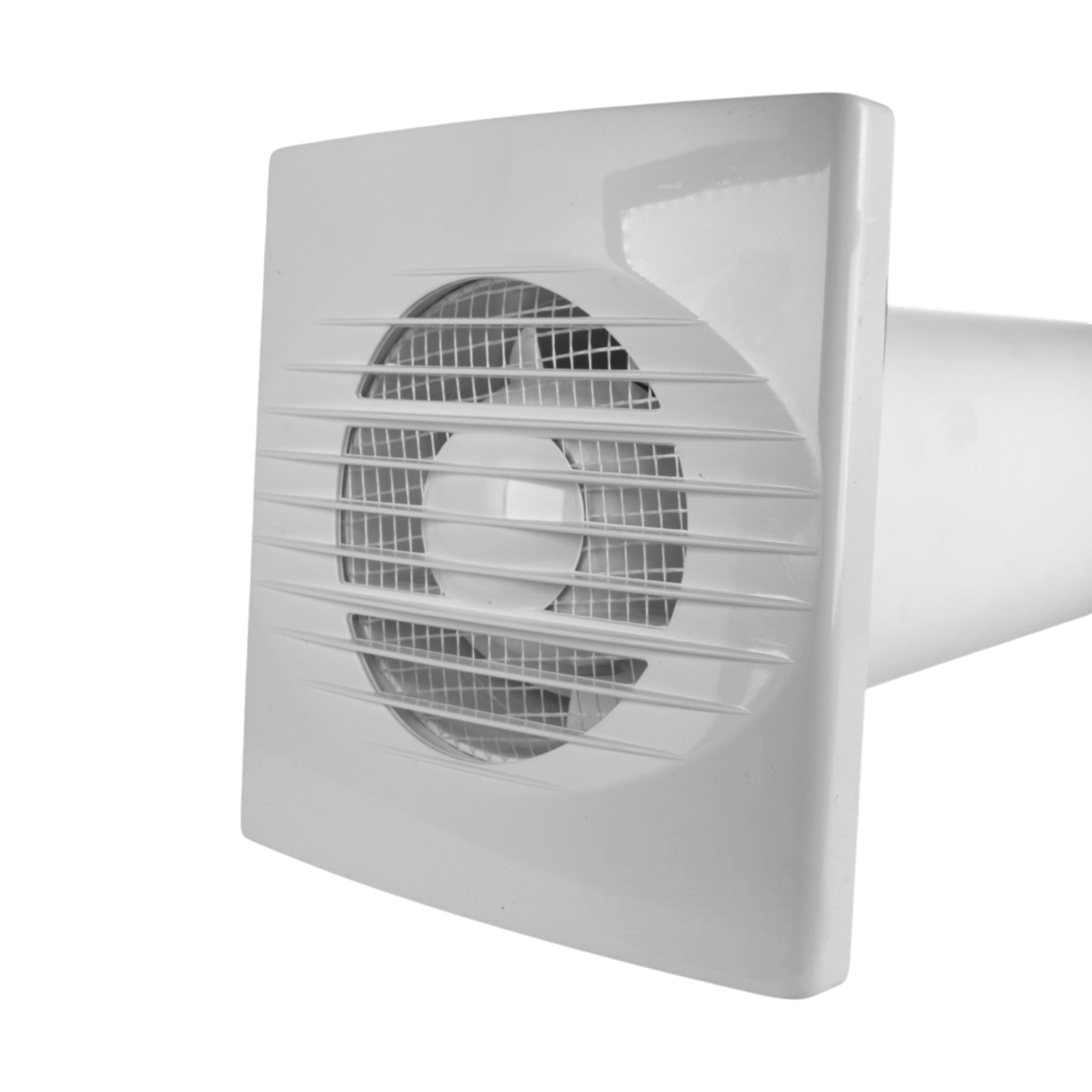

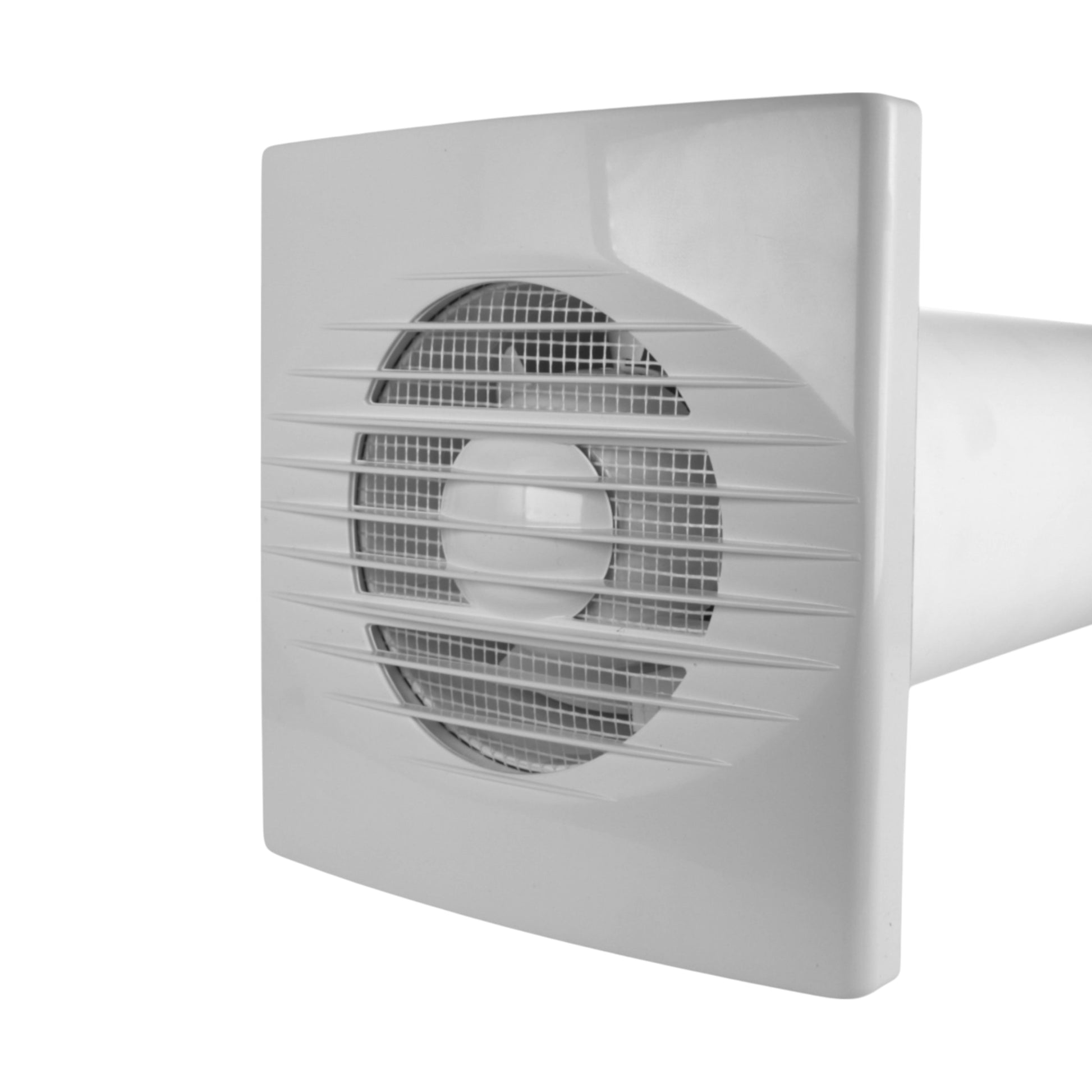

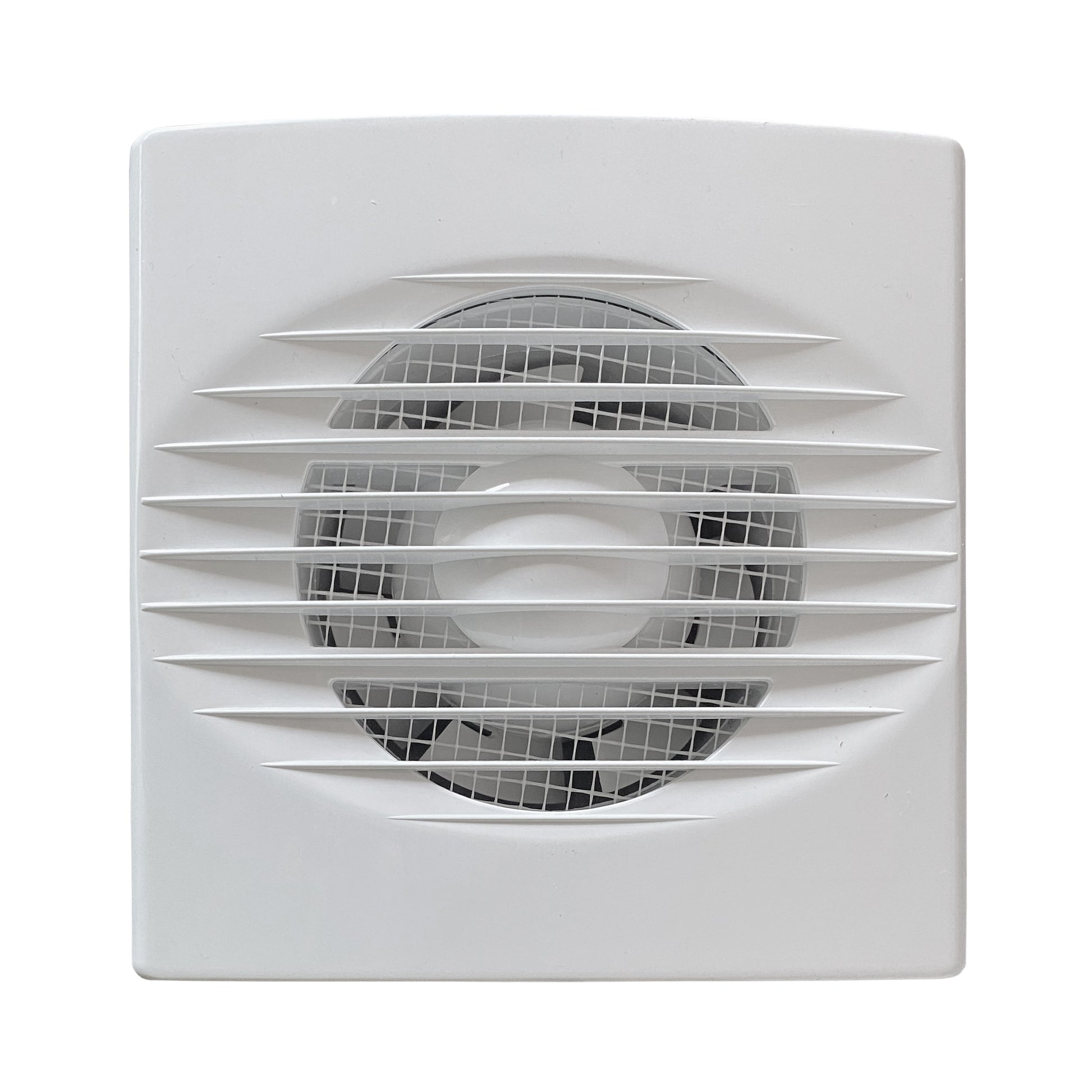

The RICO axial fan, manufactured by Dospel, boasts a sleek and compact design with a diameter of 100 mm. This fan, featuring a timer switch and hygrostat, is crafted from durable ABS plastic. It has a UV coating that prevents the fan from yellowing, ensuring it retains its pristine white colour over time. With its stylish and modern finish, this fan seamlessly blends into any interior decor.

Equipped with an IPX2 protection rating, the RICO axial fan is resistant to water ingress from vertically falling droplets when tilted at a 15-degree angle from the vertical position. Additionally, it features class II insulation, providing enhanced safety against both direct and indirect electrical contact. These safety features make it a reliable choice for residential or commercial settings.

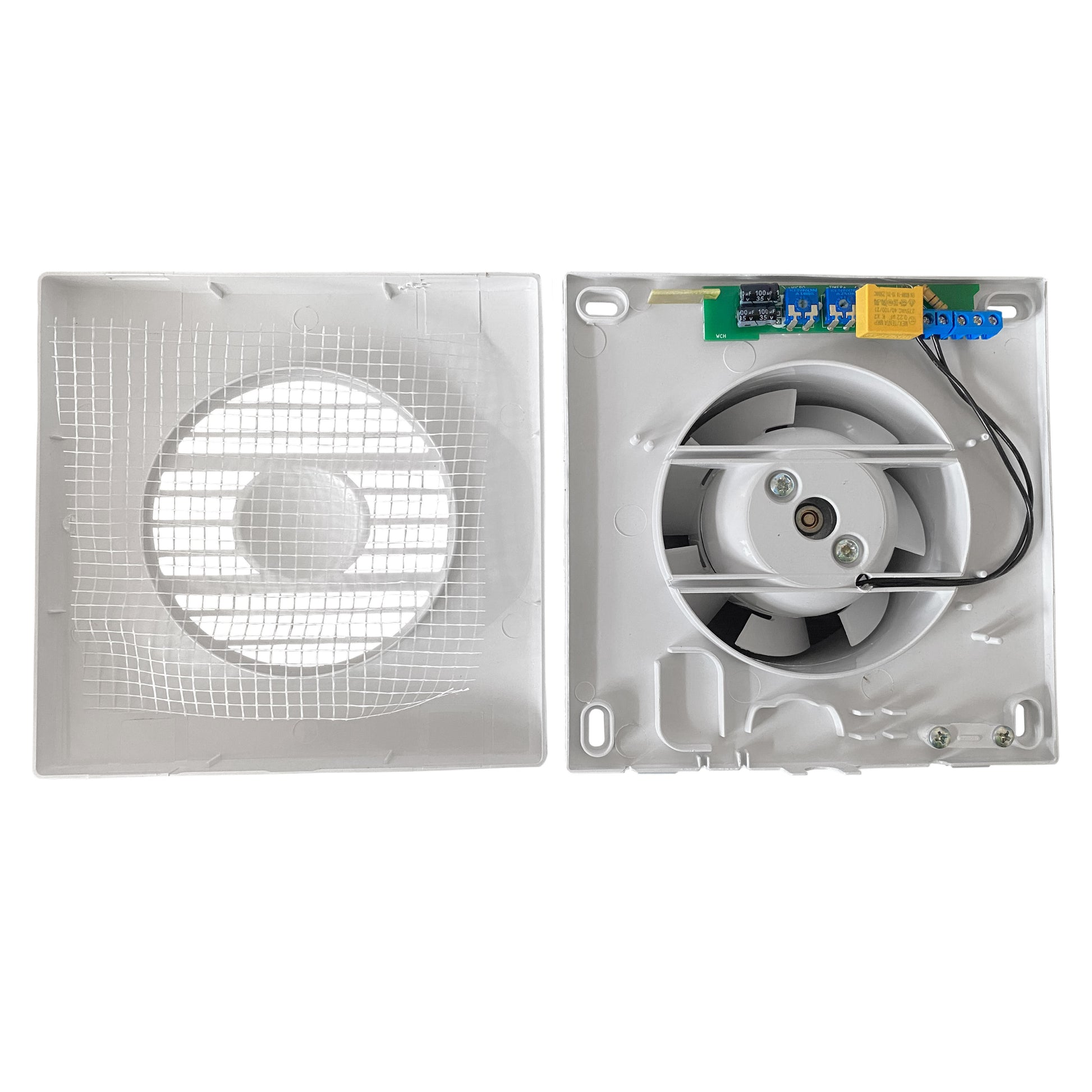

The fan's advanced functionality includes a timer switch and a hygrostat, enhancing its effectiveness. The timer switch allows the fan to continue operating for a preset duration after being turned off, ensuring continuous ventilation. The integrated humidity sensor, or hygrostat, automatically activates the fan based on the humidity levels set on the potentiometer, effectively managing moisture levels in the room and reducing the risk of mold and mildew.

Designed for wall mounting, the fan utilizes sleeve bearings and comes with power cables included in the set. The fan operates at an airflow rate of 100 m³/h with a static pressure of 34 Pa and an acoustic pressure of 40 dB(A). It runs on a supply voltage of 230/50 V/Hz, with a motor speed of 2650 rpm, drawing 0.12 A of current, and consuming 15 W of power. With a maximum operating temperature of 40°C, this fan is a compact yet powerful solution for effective ventilation.

V-P100R50CM
This rigid round PVC ducting pipe is 50cm long and designed to fit seamlessly with the fan or vent included in a through-wall vent kit. Ideal for creating a clean, protected air path, it runs through the wall to shield airflow from dust, debris, or insulation material within the cavity. Made from durable plastic, the pipe ensures reliable performance and can be easily cut to size with a standard hand saw, making it a practical choice for both DIY and professional ventilation installations.

VC-KRD0201-100-W001
The ventilation grille with a damper/ external louvre vent is a highly functional and versatile solution for managing airflow in various settings, from residential to commercial applications. This product features a built-in damper that allows precise control over the amount of air passing through, ensuring optimal ventilation efficiency. The external louvre design not only facilitates smooth airflow but also prevents the ingress of unwanted elements such as rainwater and debris, enhancing the overall durability and performance of the ventilation system.

Constructed from ABS (Acrylonitrile Butadiene Styrene), a durable and robust material known for its strength and resistance to impact, the grille is designed to withstand the rigors of both indoor and outdoor environments. ABS material is highly resistant to chemical corrosion and weathering, ensuring that the grille maintains its structural integrity and aesthetic appeal over time. This makes it an ideal choice for applications where long-term reliability and minimal maintenance are critical considerations.

Whether used in HVAC systems, industrial settings, or home ventilation, this grille offers a perfect balance of durability, functionality, and aesthetic appeal, ensuring a healthier and more comfortable environment.
