Through Wall Ventilation Kit – STYL Fan with Timer/Humidistat and White External Vent

F-STYL-100WCHP-KIT-WHITE-001

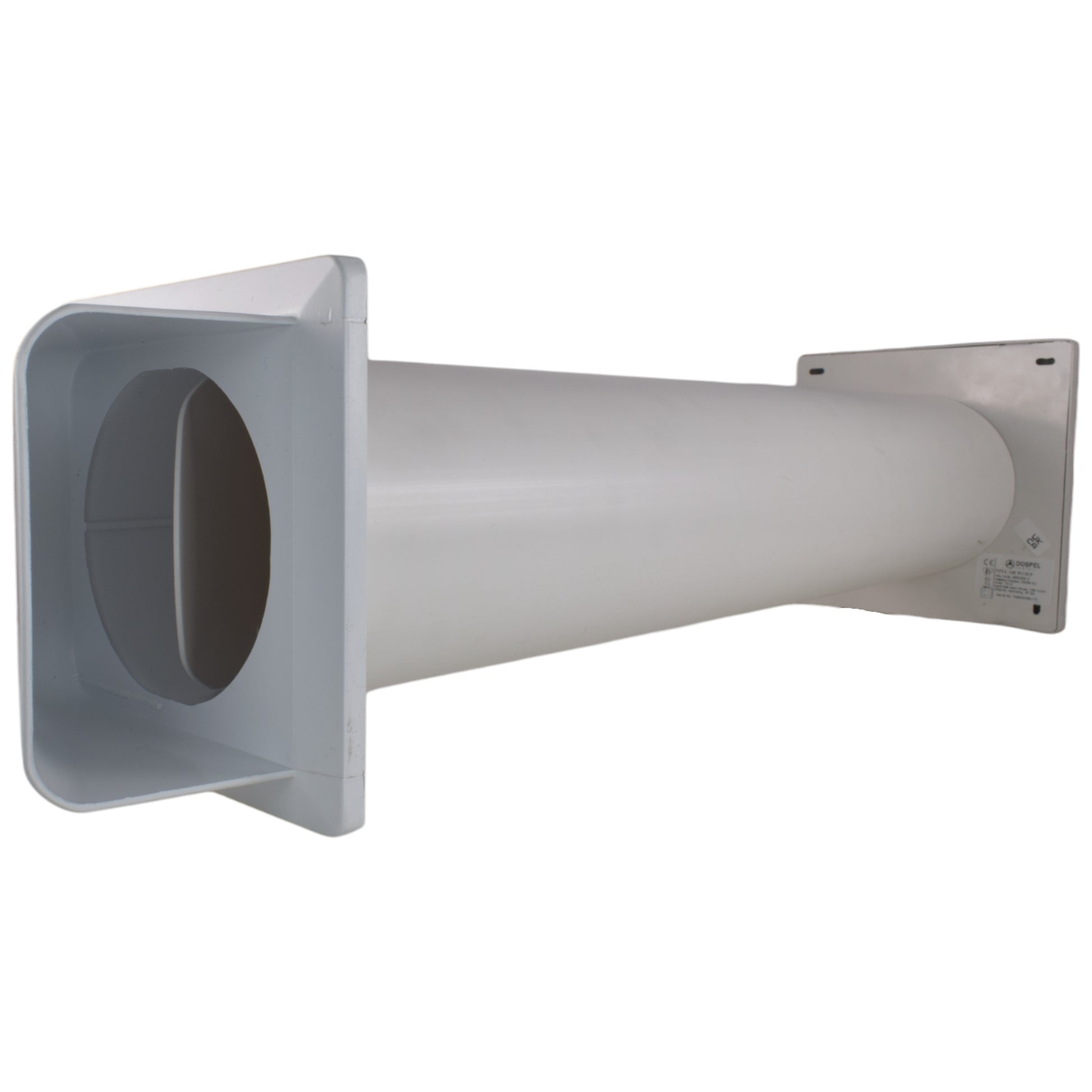

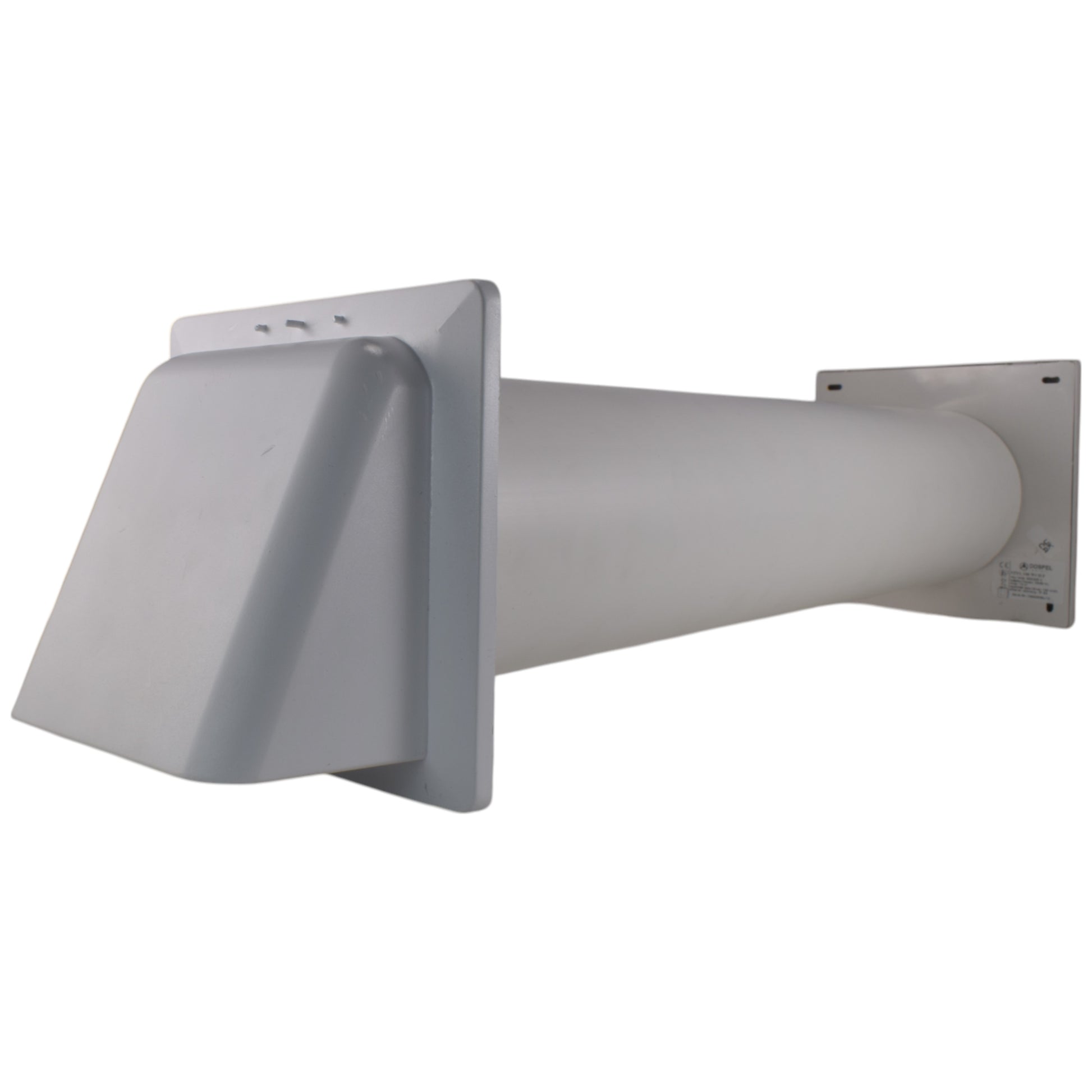

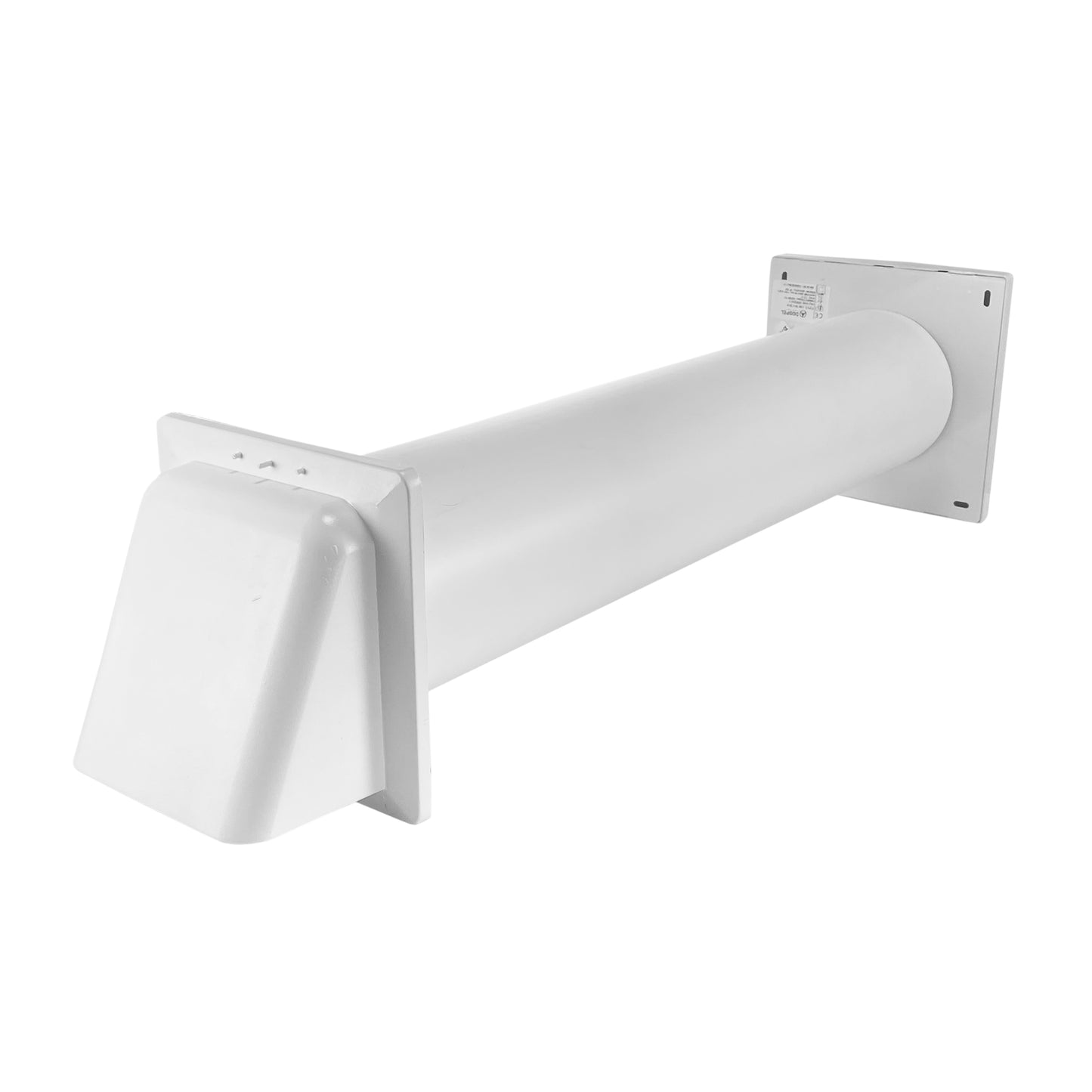

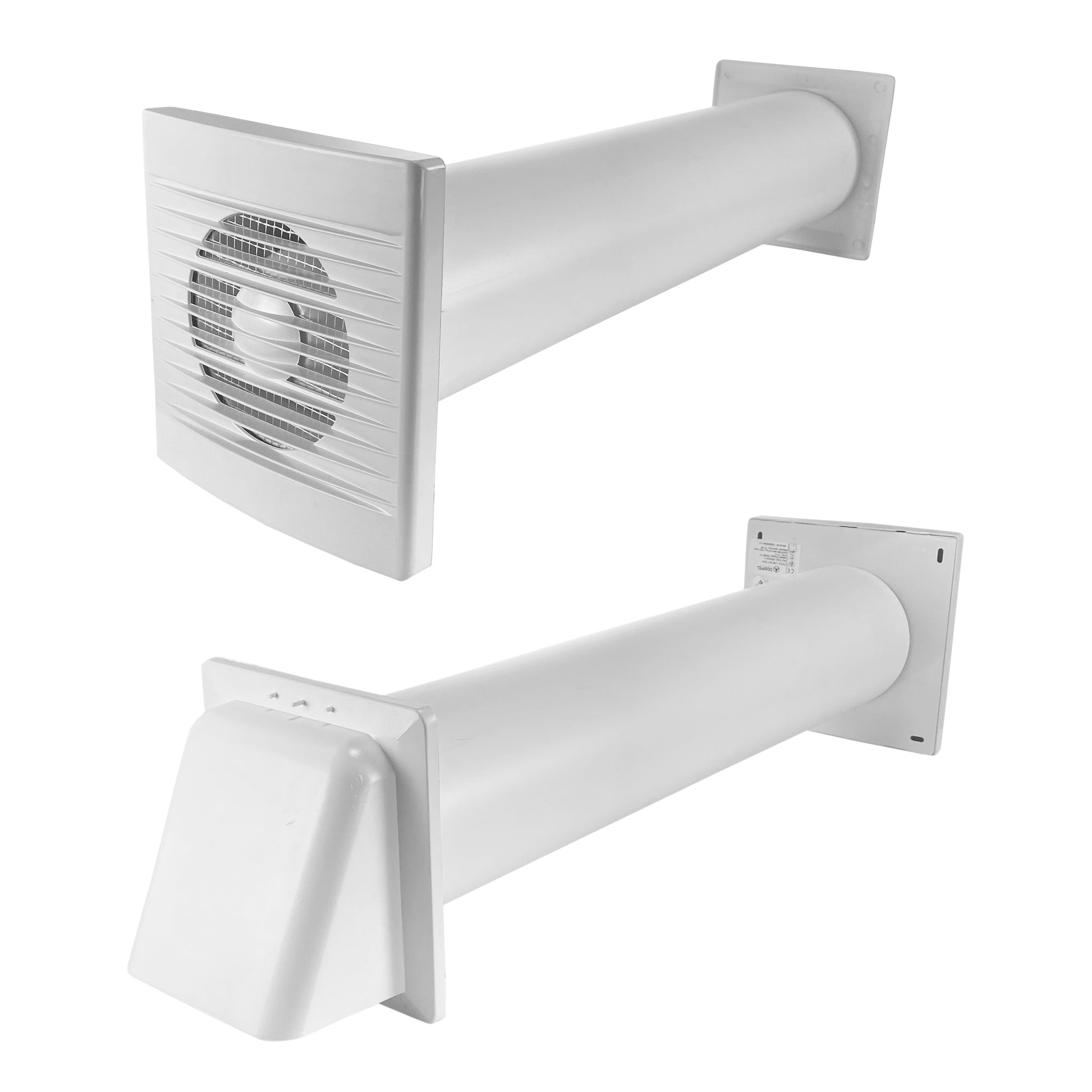

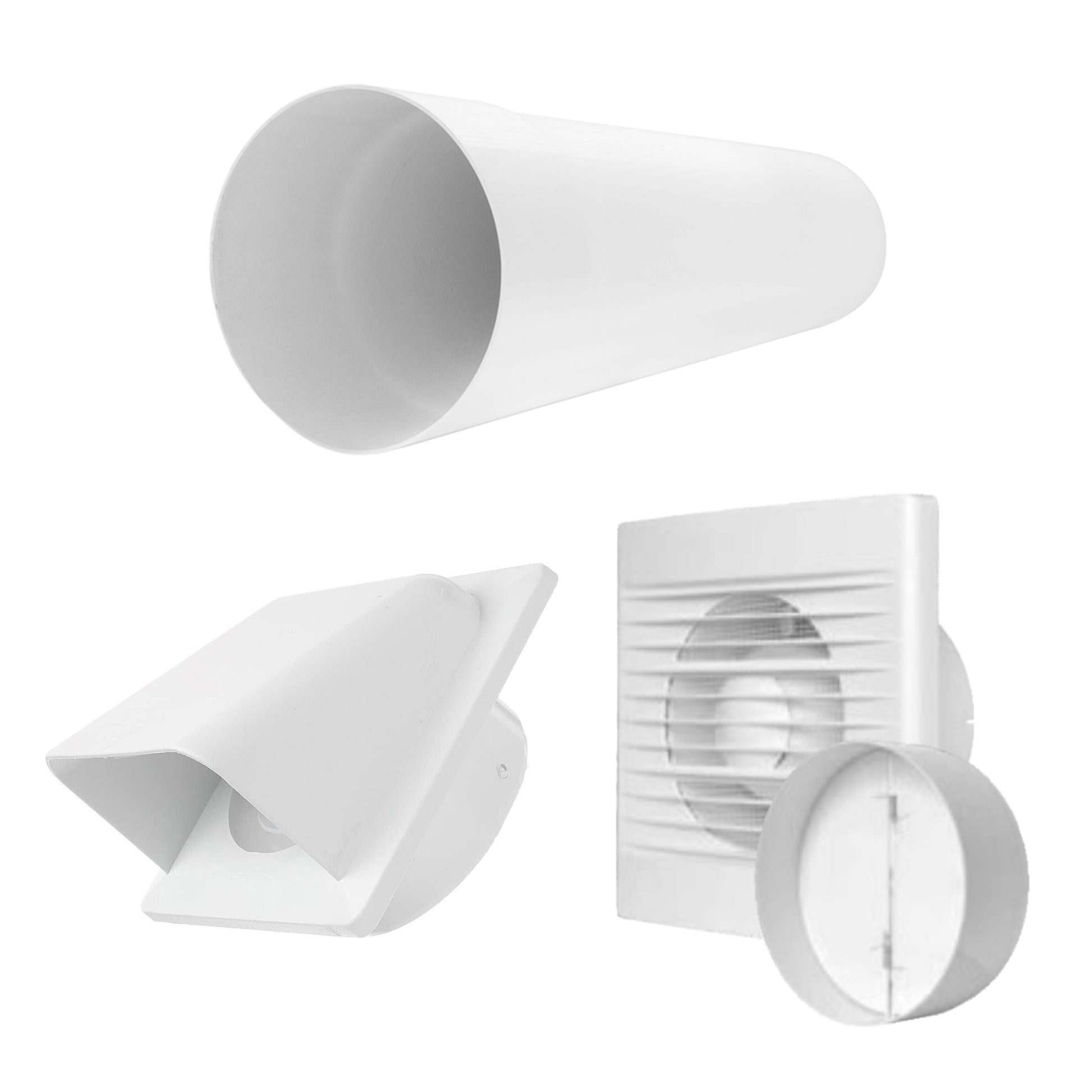

This kit contains:

• 1 x Styl Fan with Timer and Humidistat 100mm Model (F-STYL-100WCHP)
• 1 x Vent Duct Pipe Rigid PVC 50cm (V-P100R50CM)
• 1 x External Hooded White Louvre Vent (VC-KRD0201-100-W)

F-STYL-100WCHP
The STYL Axial Wall Fan is a compact and efficient ventilation solution designed for one-way airflow applications. Engineered to ensure fresh air circulation while preventing backflow, it features an integrated damper that blocks the return of air and entry of insects, enhancing indoor comfort and hygiene. Crafted from durable ABS plastic, the fan is both lightweight and resistant to wear, making it ideal for long-term installation in residential or light commercial spaces.
Powered by a 15-watt motor, the STYL Axial Wall Fan delivers a strong air flow rate of 100 m³/h with a static pressure of 34 Pa (3.47 mm H₂O), ensuring effective ventilation even in enclosed areas. The slide bearing motor rotates at a high-speed of 2650 rpm, while maintaining a relatively quiet operation with an acoustic pressure of just 40 dB(A), providing powerful yet unobtrusive performance.
Designed for reliability and energy efficiency, the fan operates on a standard 230 V/50 Hz power supply and consumes only 0.12 A of current. It is rated for a maximum operating temperature of 40°C and features insulation class II for added electrical safety. Whether used in bathrooms, kitchens, or utility rooms, the STYL Axial Wall Fan offers a practical and discreet solution for maintaining air quality and ventilation.
V-P100R50CM

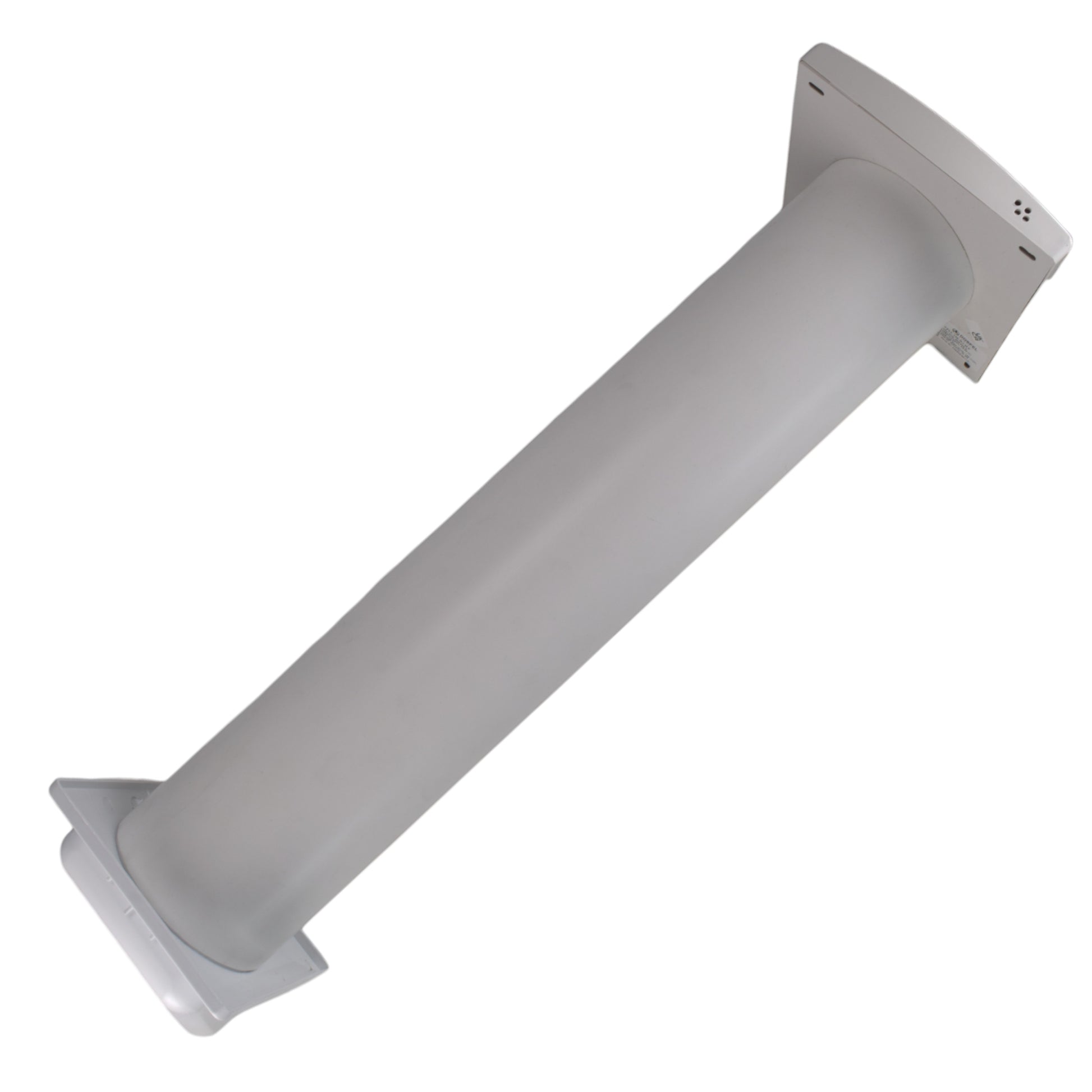

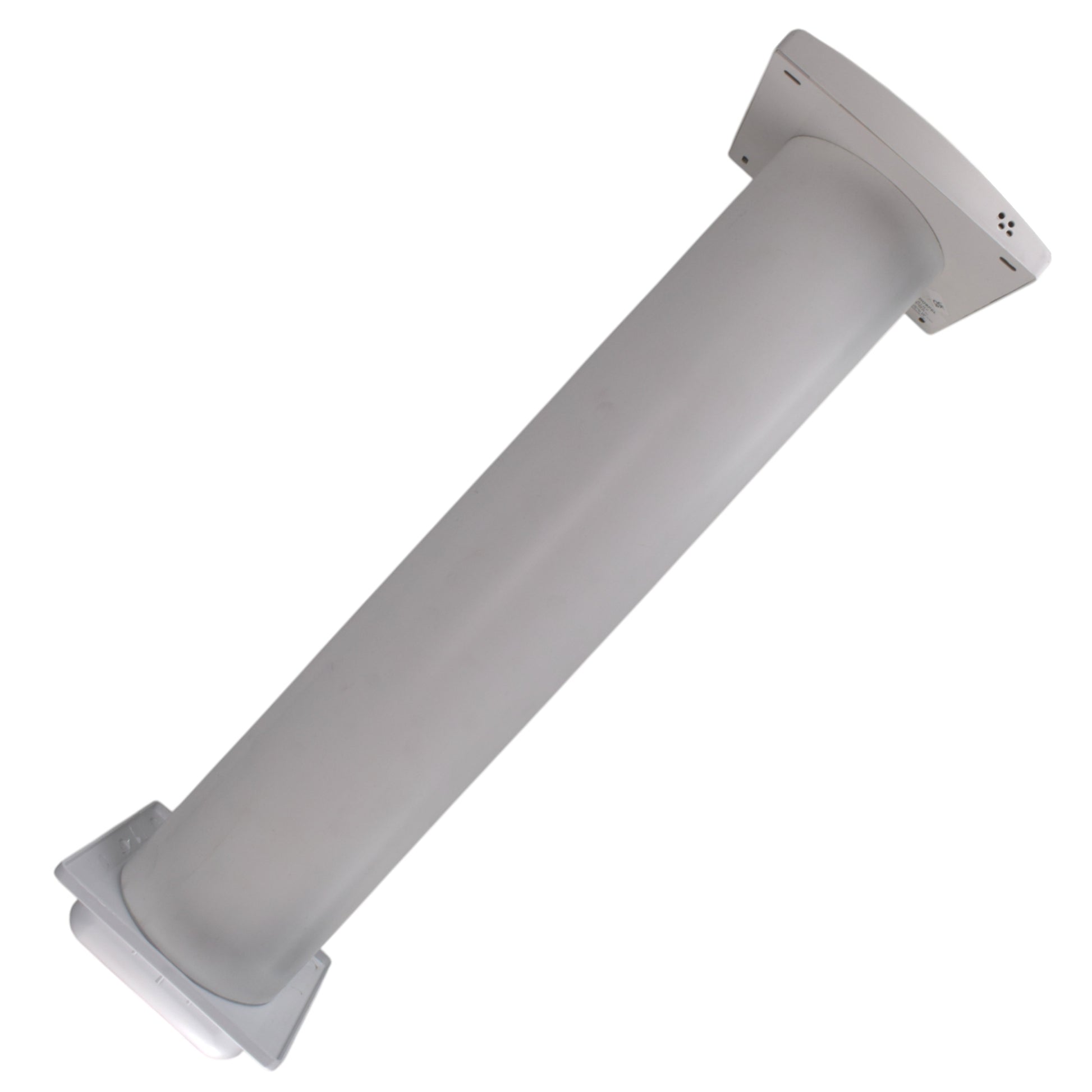

This rigid round PVC ducting pipe is 50cm long and designed to fit seamlessly with the fan or vent included in a through-wall vent kit. Ideal for creating a clean, protected air path, it runs through the wall to shield airflow from dust, debris, or insulation material within the cavity. Made from durable plastic, the pipe ensures reliable performance and can be easily cut to size with a standard hand saw, making it a practical choice for both DIY and professional ventilation installations.
VC-KRD0201-100-W001

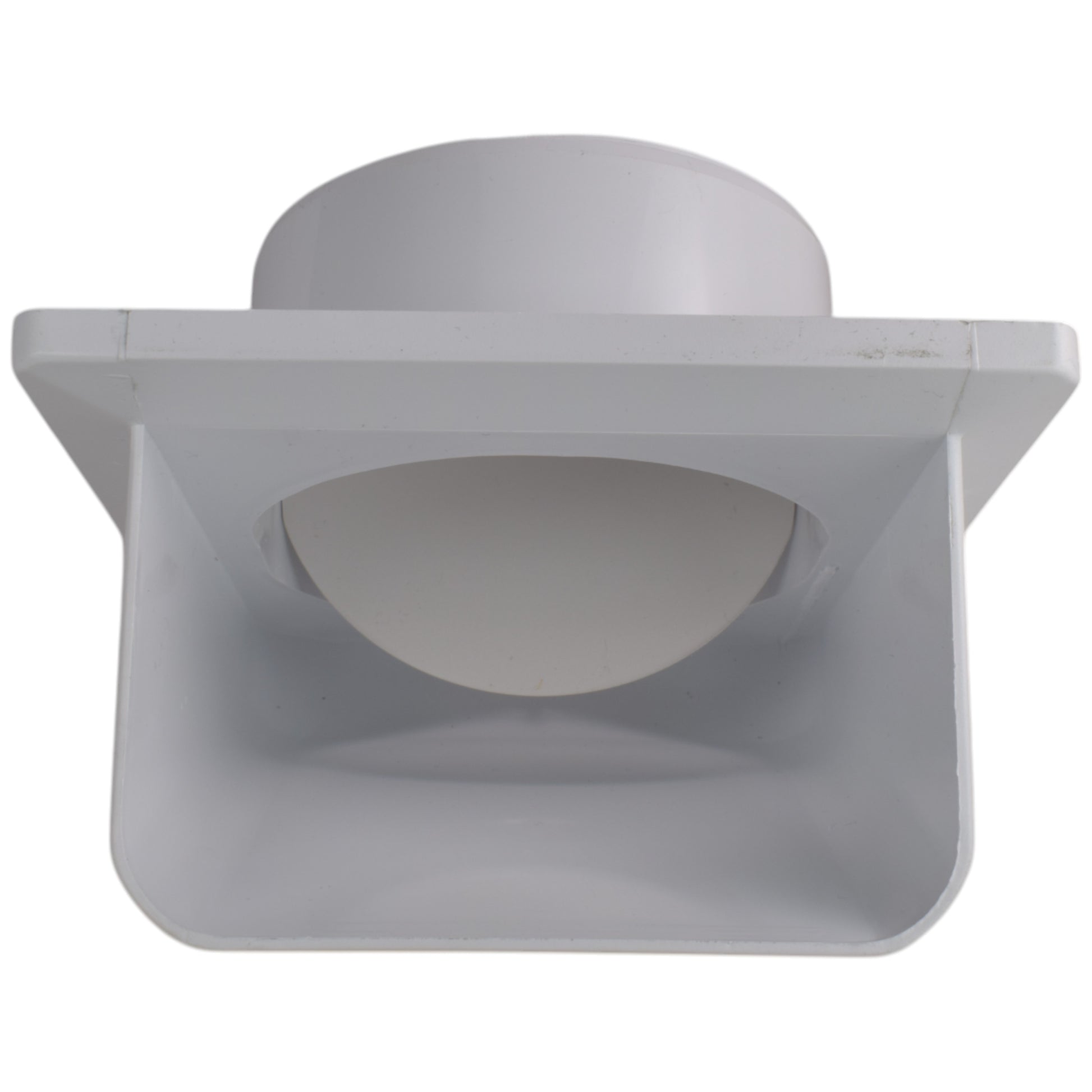

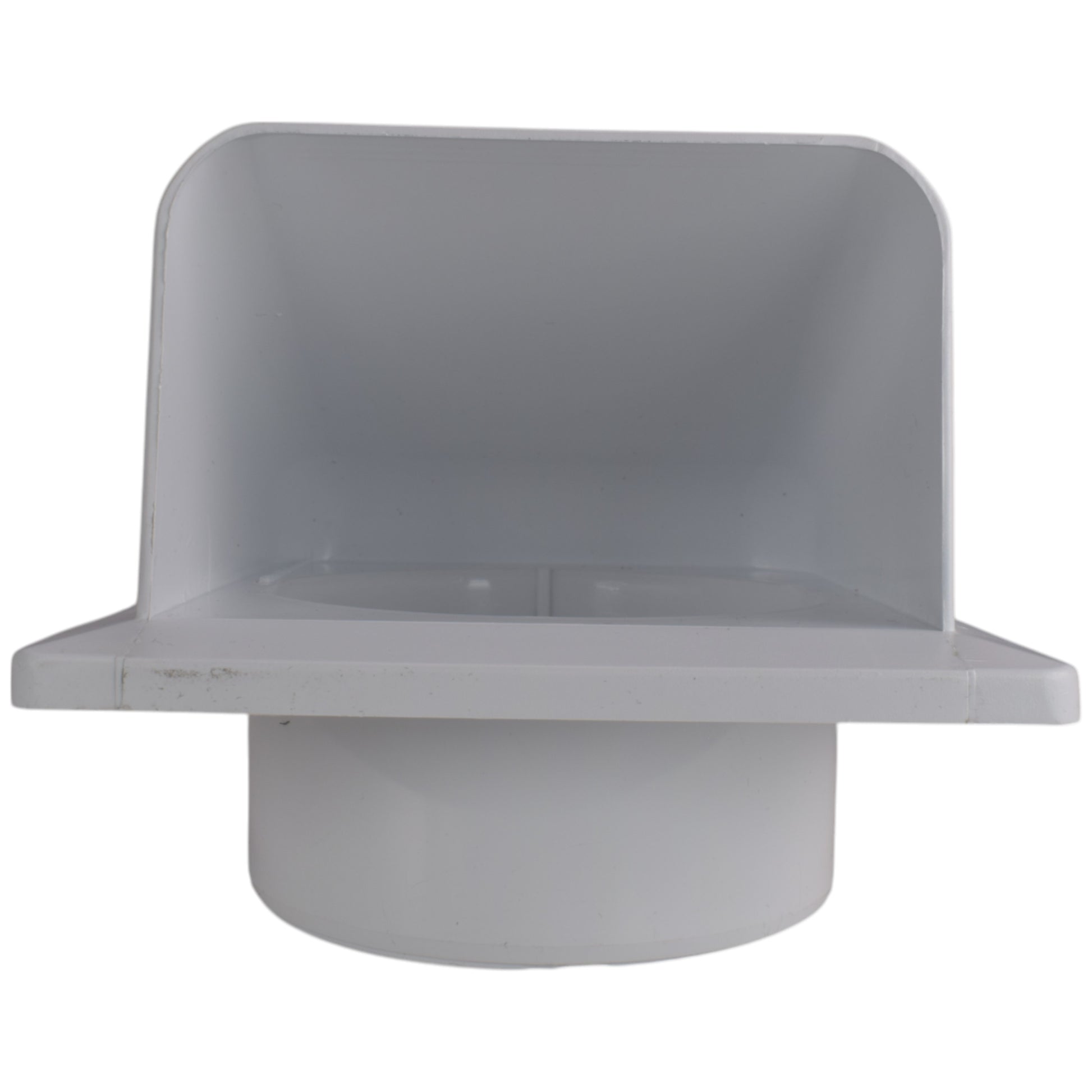

The ventilation grille with a damper/ external louvre vent is a highly functional and versatile solution for managing airflow in various settings, from residential to commercial applications. This product features a built-in damper that allows precise control over the amount of air passing through, ensuring optimal ventilation efficiency. The external louvre design not only facilitates smooth airflow but also prevents the ingress of unwanted elements such as rainwater and debris, enhancing the overall durability and performance of the ventilation system.
Constructed from ABS (Acrylonitrile Butadiene Styrene), a durable and robust material known for its strength and resistance to impact, the grille is designed to withstand the rigors of both indoor and outdoor environments. ABS material is highly resistant to chemical corrosion and weathering, ensuring that the grille maintains its structural integrity and aesthetic appeal over time. This makes it an ideal choice for applications where long-term reliability and minimal maintenance are critical considerations.
Whether used in HVAC systems, industrial settings, or home ventilation, this grille offers a perfect balance of durability, functionality, and aesthetic appeal, ensuring a healthier and more comfortable environment.
